e-skin® SKS24

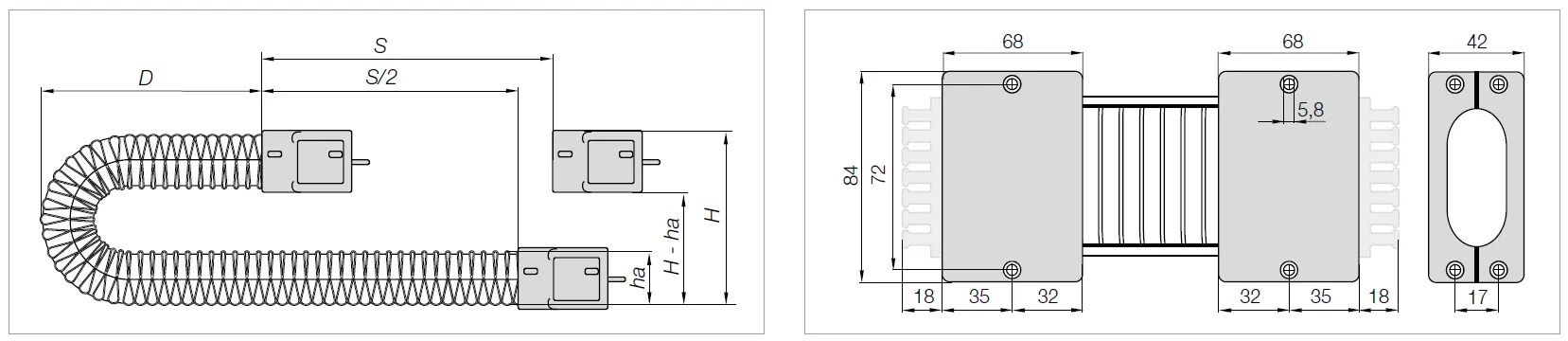

Proven design for the highest cleanroom class. Addition to the e-skin® product range. The SKS24 fills the gap between the smallest e-skin® SKS20 and the SKS28. The shells form an inner height of 24mm and inner width of 48mm. The side links and the locking mechanism have the thickness of the SKS28, maximising the unsupported length.

Send an e-skin® SKS24 query now

Technical data

Part No..

inner height
[mm]

outer height
[mm]

inner width
[mm]

outer width
[mm]

bend radius
min.* [mm]

cable
≤ø[mm]

SKS20.033.02.1

055

SKS24.048.02.1

055

SKS28.068.02.1

055

SKS40.085.02.1

118

100

*Note: the minimum bend radius is given by the bottom of the e-skin® corrugated tube

Tech up

New intermediate size with Hi = 24 mm
Small installation space due to soft e-skin®® material despite long reach due to self-supporting function
Easy filling thanks to proven zipper opening principle
Sidebands with the thickness of the SKS28 for the greatest possible unsupported length

Reduce costs

Soft material for use in small installation spaces
Gentle on cables due to defined minimum bend radius
No contamination of the cleanroom or products by the energy supply
Tried and tested design for the highest cleanroom class

Proofs IPA Certificate ISO Class 1 of SKS28
Tests in the igus® internal ISO Class 1 cleanroom laboratory

sustainability

Individual cables can be replaced
Small installation space Smallest possible required cleanroom
Have your energy or drag chain recycled at the end of its life cycle in the igus® Chainge® recycling programme. No matter which manufacturer.

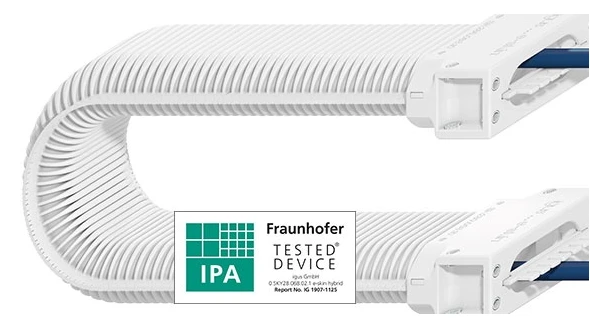

Other e-skin corrugated tubes for cleanrooms

To keep rooms particle-free, all machine components must be abrasion-resistant, including the energy supply. With the corrugated tube e-skin®, systems are supplied with data, media and energy without unwanted particles contaminating the air.

To the e-skin corrugated tubes
