Many cables in a very confined space

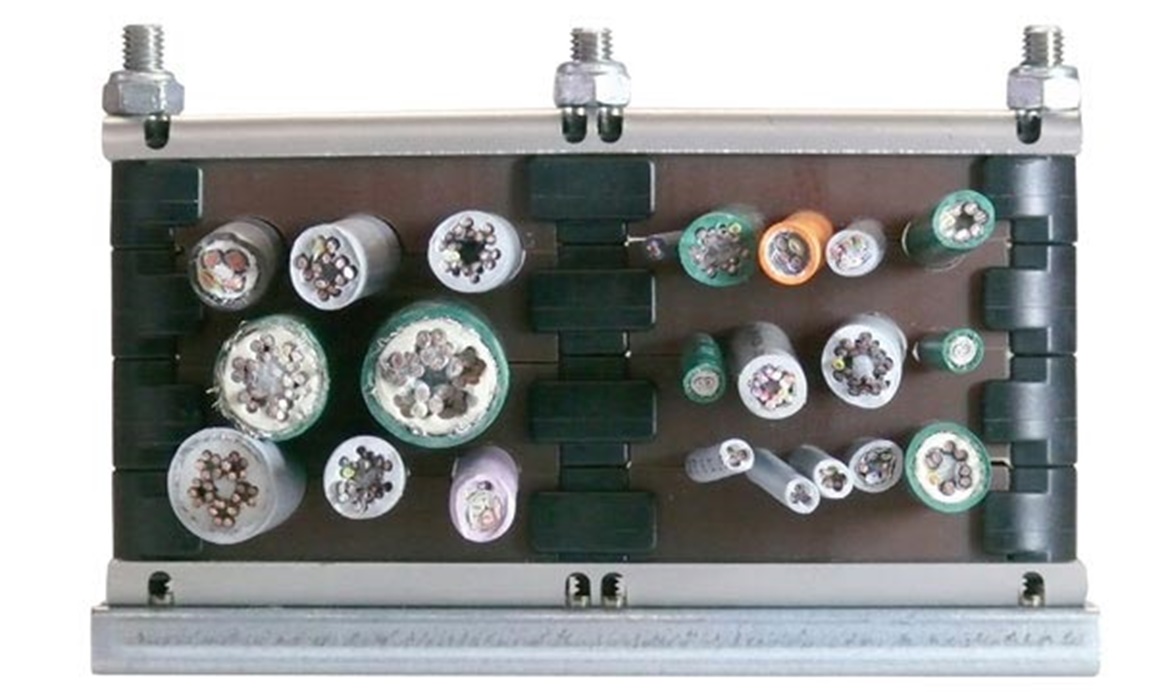

CFB: Modular, plastic strain relief connector system for mounting on C-profile
Cables can be strain-relieved by plastic fasteners in a confined space with PU components. This modular connector system allows customized strain relief options.Available in 2 configurations
Fast assembly using standard screws
Can be mounted in the mounting bracket or in front of the energy chain
Starting at lot size 1
Low-cost and effective
Industries:General mechanical engineering, machinery of all kinds
| Parts list
description |
Article | Quantity | |
|---|---|---|---|
| 1 = holding block outside | CFB20-1 | N x 2 |  Inquiry |
| 2 = terminal strip | 901-881-1-XXX | 2 | Inquiry |
| 3 = threaded bolt with plate | 901-825-2-LLL | 2 | Inquiry |
| 4 = hexagonal nut M8 | MAT0040012 | 2 | Inquiry |
| 5 = C profile (part of the KMA) | 92-42-XXX | 1 | Inquiry |
| 6 = strain relief block | Customer specific | 1 | Inquiry |
| Parts list
description |
Article | Quantity | |
|---|---|---|---|
| 1 = holding block outside | CFB20-1 | N x 2 | Inquiry |
| 2 = holding block inside | CFB20-2 | N | Inquiry |
| 3 = terminal strip | 907-825-1-XXX | 2 | Inquiry |
| 4 = threaded bolt with plate | 907-825-2-LLL | 3 | Inquiry |
| 5 = hexagonal nut M8 | MAT0040012 | 3 | Inquiry |
| 6 = C profile (part of the KMA) | 92-42-XXX | 1 | Inquiry |
| 7 = strain relief block | Customer specific | 1 | Inquiry |
| 8 = strain relief block | Customer specific | 1 | Inquiry |
