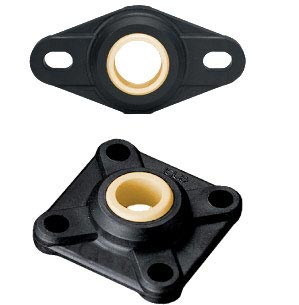

igubal® flange bearing

Like all igubal® products, these flange bearings consist of a housing made from igumid G and a spherical ball made from either iglide® L280 or iglide® R for standard parts, or with any iglide material as a special. igubal® flange bearings correspond to dimensional series E and are offered with two or four mounting holes.

Since igubal® flange bearings are made for maintenance-free use, they are especially suited for applications in which access to the bearing is limited, in moist or wet environments or cleanroom environments. Thus, igubal® flange bearings are used in electric toothbrushes, awnings, conveyor technology, bakery machines and agriculture.

igubal® flange bearings are designed for mounting with 2 or 4 bolts, depending on the design. The 2-hole types are provided with elongated holes, which allow a problem-free adjustment. An exact positioning of the bearing housing is not necessary, since the spherical ball compensates for alignment errors.

igubal® flange bearings with 2 and 4 mounting holes can be obtained in standard IDs of 0.190" to 1.50" (5 to 30 mm). Please ask us about additional dimensions.
